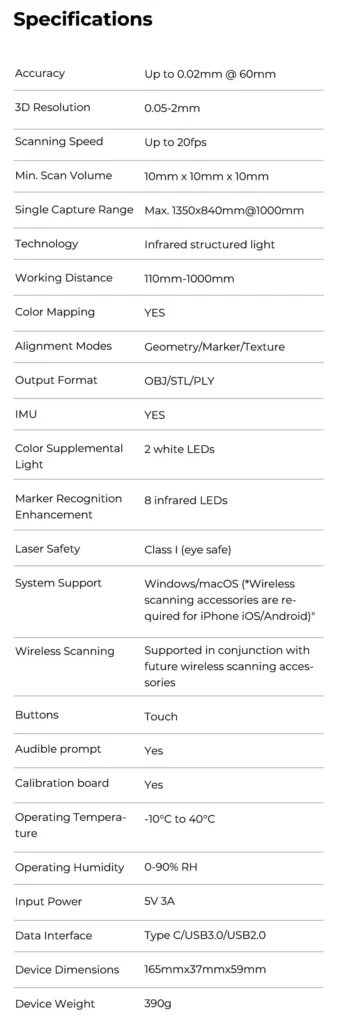

3D Scanner Specifications:
Wide Size Range 3D Scanner
Versatile in 3D scanning, addressing personal and commercial requirements. Our Scanners excel in detailed 3D scanning across a wide range of object sizes, leveraging a dual lens setup. It simplifies scanning of traditionally challenging materials, such as black or metallic items, without the need for additional sprays.
Having eight infrared lights, the scanner improves its capability to track marker points on objects without clear features, resulting in precise scans. This marker mode is especially beneficial for high precision objects. The scanner is engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, as an accuracy of up to 0.02mm and a 3D resolution of 0.05-2mm. It has an object scanning range of 10mm to 2000mm.
Feature:
🤗High-Precision and Fast 3D Scanning: The Otter 3D Scanner offers industry-leading accuracy of 0.02 mm and fast scanning speeds of 20 frames per second. With this level of precision, it can capture even the smallest details of an object, allowing you to create highly accurate 3D models quickly and easily.
🤗Unmatched Scanning Performance: Our scanners feature an innovative four-lens stereo vision system that handles both large and small scans superbly, ranging from 0.39 to 78.8 inches in size. It includes a set of long-focal-length dual lenses for scanning small objects with rich details and a set of short-focal-length dual lenses for capturing larger objects in a single range of up to 1350 mm x 840 mm at 1000 mm, ensuring improved tracking and scanning of larger objects.
🤗Unique Face Algorithm with Eye Protection: The face and body mode is equipped with a unique facial mapping algorithm that enables the capture of intricate details, including hair. This mode uses near-infrared light, invisible to the human eye, making it safe and comfortable for your eyes. You can scan skin and faces worry-free.
🤗Stable Scanning and Easy Operation: Equipped with 8 infrared LEDs, 2 white LEDs, 4 stereo depth cameras, and 1 RGB camera, the Otter can capture clear scan data and generate stable results outdoors. Three touch-sensitive buttons on the scanner make it easy to start/pause scans and adjust the exposure of the depth camera on the go, allowing you to precisely control your scanning process. 🤗User-Friendly Software: It supports multiple data format outputs, including OBJ, STL, and PLY. This compatibility with a wide range of CAD, 3D modeling, and design software makes it versatile and suitable for various applications such as modeling, animation, presentation, printing, and design, expanding the possibilities
3d Scan SMALL TO LARGE OBJECTS 10mm to 2 meters in size.
Small Object 3D Scanning
Scan small objects to 10mm in size with a 3D Resolution of 0.05mm.
Large Object 3D Scanning
Ideal for automotive applications. Scan large objects up to 2 meters in size with a 3D Resolution of 2mm.
3D Scan in Daylight
Engineered with advanced DOE (Diffractive Optical Element), our 3D scans use Infrared Structured Light which enables it to scan in full sun light in indoors.
24-Bit Full Color Scanning
Equipped with million pixel full-color RGB cameras. Object color can be captured and mapped onto the mesh model.
Marker Scanning Mode
We can scan with marker points for high dimensional accuracy on parts when scanning parts with fewer features.
3D Scan Black & Metallic Objects such as car parts, tires can castings without the need of scanning spray.
3D Scan in Low Light Environments
The inbuilt dual LEDs ensure faithfully reproduced precise color textures in in low light conditions.
Face & Body Scanning
Utilizing Near-Infrared Light, invisible to the human eye, can safely and easily capture fine details and hair with ease.
